The Production Line Assignment View Color Mode - spot assignment errors at a glance

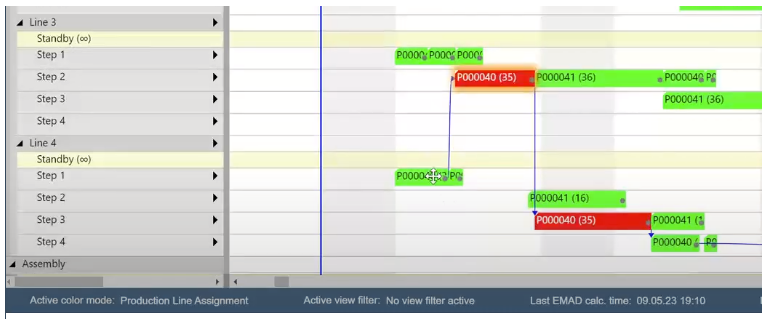

If you work with production lines, the Production Line Assignment View helps you visually identify violations of line dependencies—such as operations from the same production order being assigned to different lines.

You can apply the Production Line Assignment View in three ways:

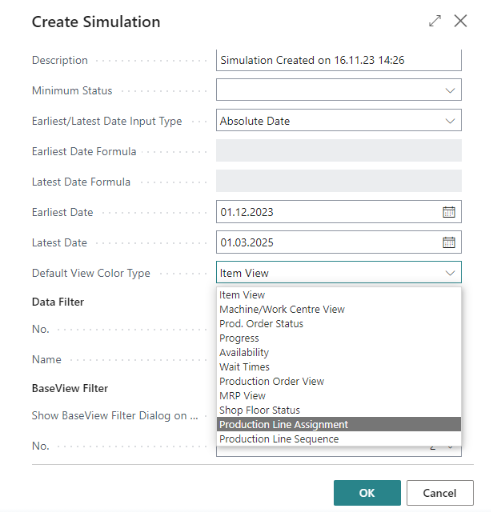

• When creating a new simulation, you can choose it as the "default view color type":

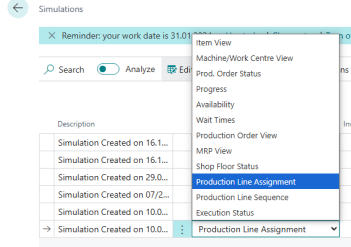

• On the "production simulations" page, you can choose it as "default view color type":

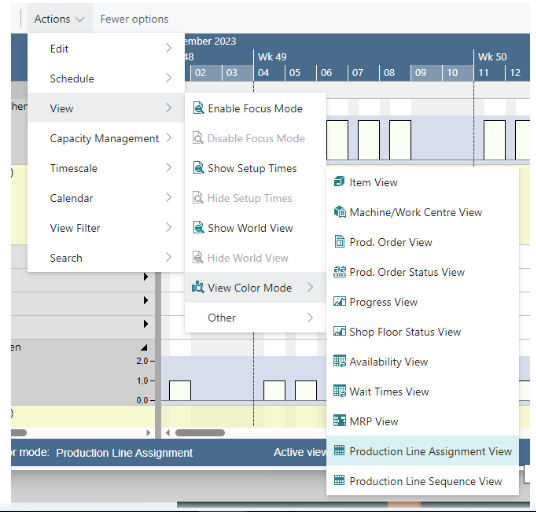

• Within the Visual Schedule via Actions → View Color Mode →  Production Line Assignment:

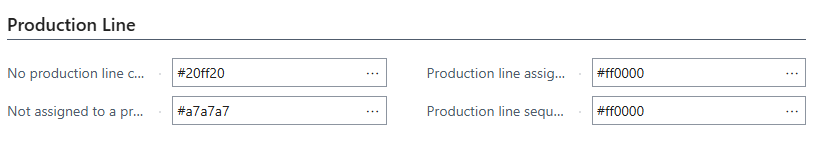

Customizing Colors

You can tailor the default colors used in the view to your preferences. These settings are available in the according section of the Color Setup.
