The Execution Status View Color Mode provides feedback on the operational status of tasks on the shop floor: ready, in progress, finished, and the rest.
The VAPS already offers the "Shop Floor Status" color scheme to highlight deviations between the planned schedule and actual shop floor data. To provide even greater transparency, we've added the "Execution Status" color scheme. This scheme provides feedback on the operational status of tasks on the shop floor, including:
-
Ready to Start
-
In Progress
-
Finished
-
With Posting Issues
-
Remaining
It also considers direct predecessors and successors.
How to Apply the Execution Status View
You can enable the Execution Status View in three ways:

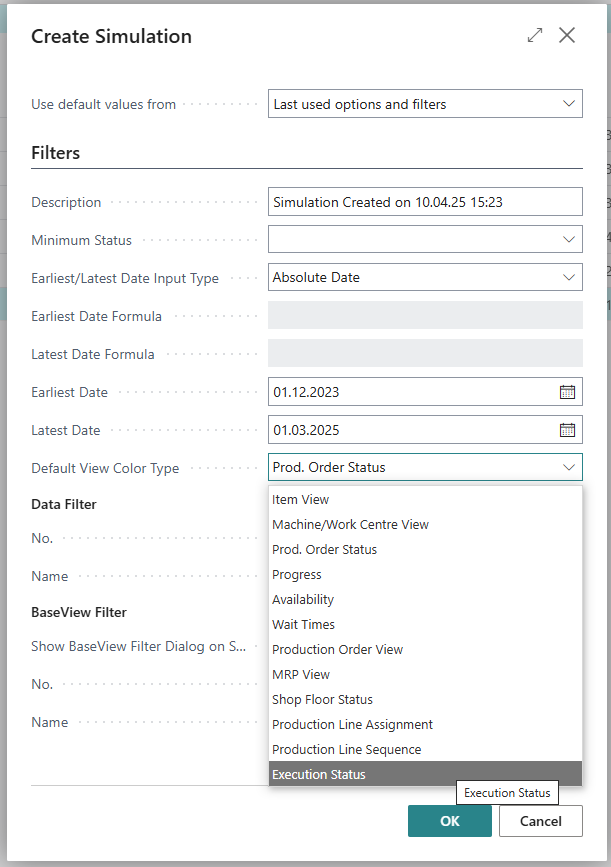

- When creating a new simulation by selecting it as the Default View Color Type
-

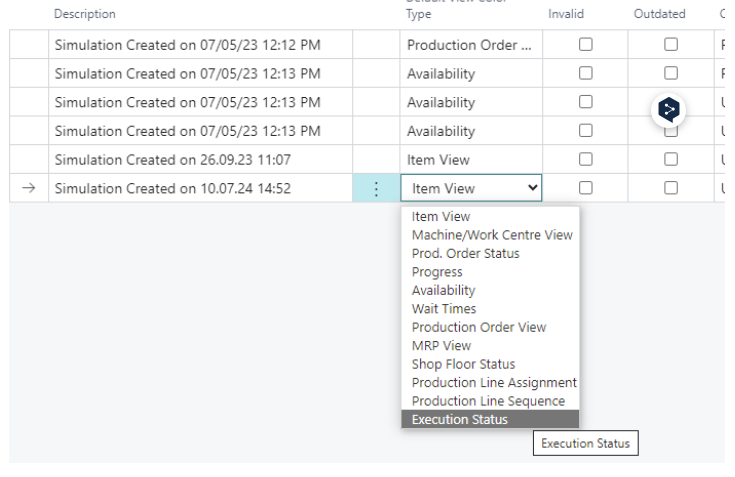

On the Production Simulations page, select it as the default view color type.
-

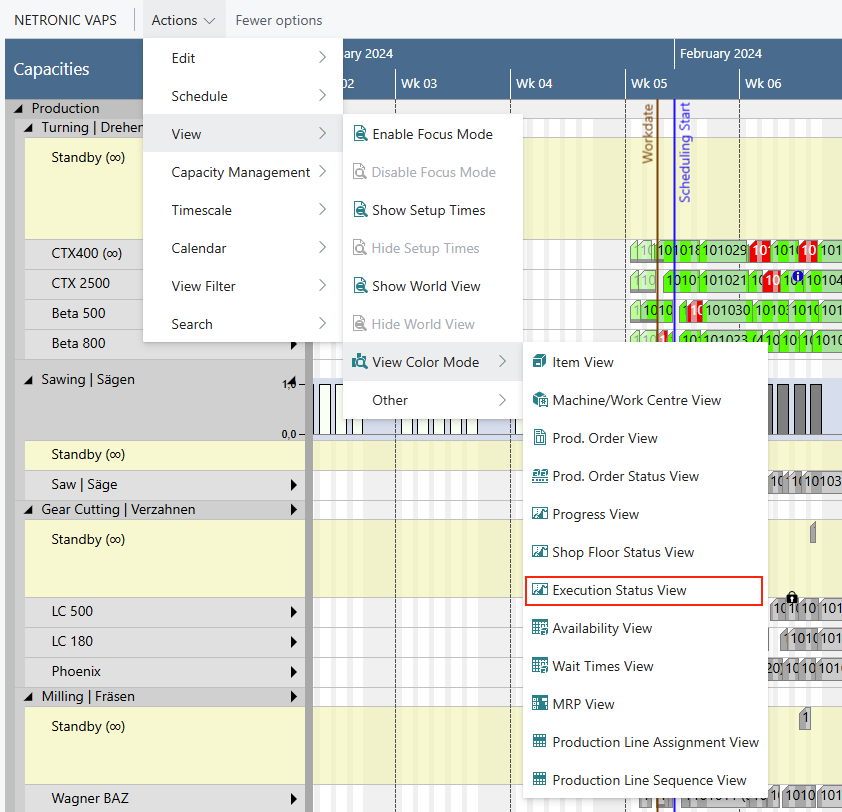

In the Visual Schedule, go to Actions → View Color Mode → Execution Status View.
Customizing Default Colors

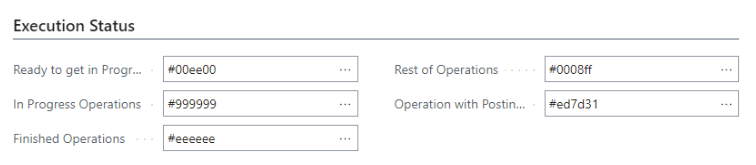

You can adjust the default colors used for this view to meet your needs. Changes can be made in the Color Setup section. The image below shows the default colors provided by VAPS.
Example

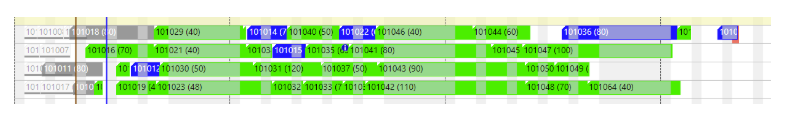

The screenshot below demonstrates the Execution Status view with the default color settings applied.
