Settings - Custom task tooltips

When you hover over jobs (production orders) or tasks (operations) in your plan, a tooltip is displayed (unless you disable it under General settings). Schedule allows you to customize the content of the tooltips shown over tasks.

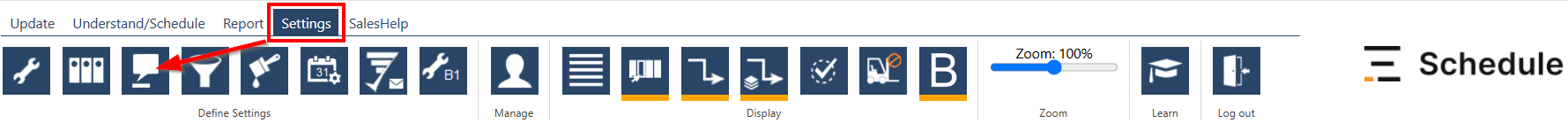

To do so, open the third tab of the Settings modal. You can also open it directly by selecting Settings from the top menu bar, then clicking the text bubble icon as shown below.

This will display a modal where you can select what field values to add to the tooltips in different views, including Job View and Resource View that appear on separate tabs.

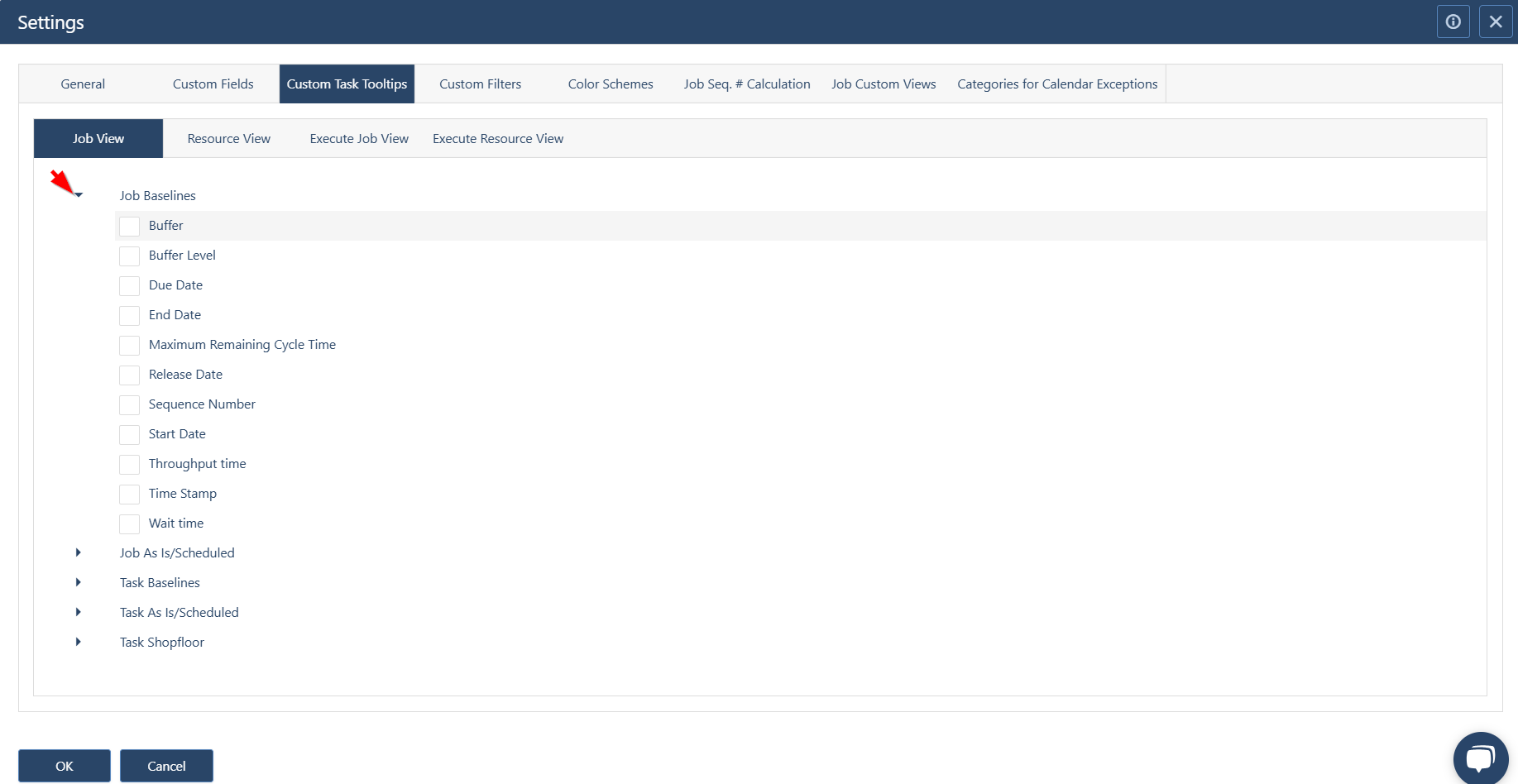

Fields are arranged into groups by use case (topic). If you click the triangle beside a topic (indicated by the red arrow below), it will be expanded into a checklist of fields. Tick a checkbox to add the value of the corresponding field to your task tooltips.

By default, the following fields are selected under the different topics both on the Job View and the Resource View tabs:

Job Baselines - None

Job As Is/Scheduled

• Due Date
• Name
• Release Date
• Sequence Number

Task Baselines – None

Task As Is/Scheduled

• Assigned Resources
• Cycle Time
• End Date
• Note
• Prod Time per Unit
• Quantity
• Resource Group
• Send Ahead Quantity
• Start Date
• Status

Task Shopfloor - None

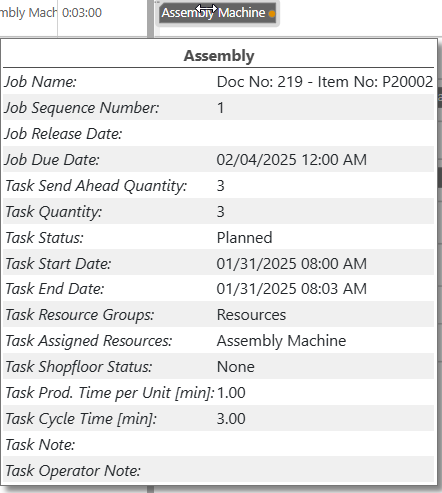

The fields are listed alphabetically in the Settings modal, but, as you can see in the following screenshot taken with the above default settings, they appear in a different order in the tooltips.
