Set up the working area

You can adjust the elements of your working area to your needs and planning situation.

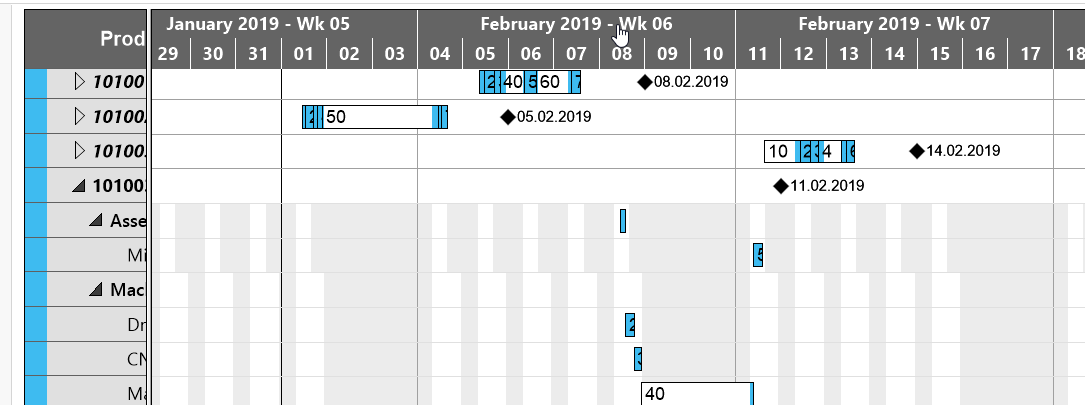

Adjust the time scale

Increase/reduce time scale solution

Depending on how much detail or summary is required, you can either increase or reduce the time scale solution by

• mouse wheel within the time scale
• <Shift> + mouse wheel outside the time scale

Return to default time range

If you have adjusted the time scale and want to restore the original view, simply click the icon to reset the display to the time range defined in the 'Setup' dialog.

Enlarge/reduce diagram

Zoom the diagram in or out by <Ctrl> + mouse wheel.

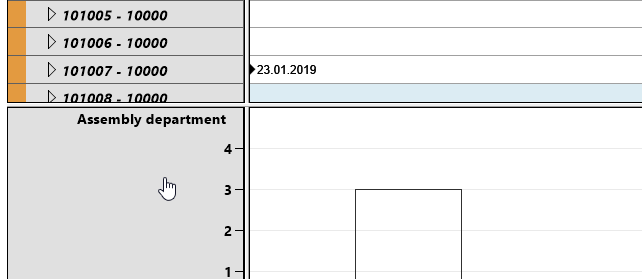

Adjust the numeric scale of the histogram

To adjust the resolution of the numeric scale in the histogram, hover over the scale and drag upward to increase or downward to decrease it.

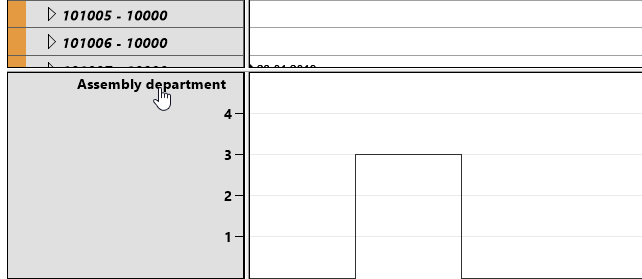

Adjust the height of the histogram

Accordingly, you can modify the height of the histogram. Drag the horizontal splitter bar between histogram and table/diagram area upward or downward

Adjusting the width ratio between table and diagram

You can modify the width ratio between the table and the diagram by moving the vertical splitter bar between them.

Note: Changes made in the histogram area are temporary and will be reset automatically; they are not saved permanently.
