Item details - 2. Item structure

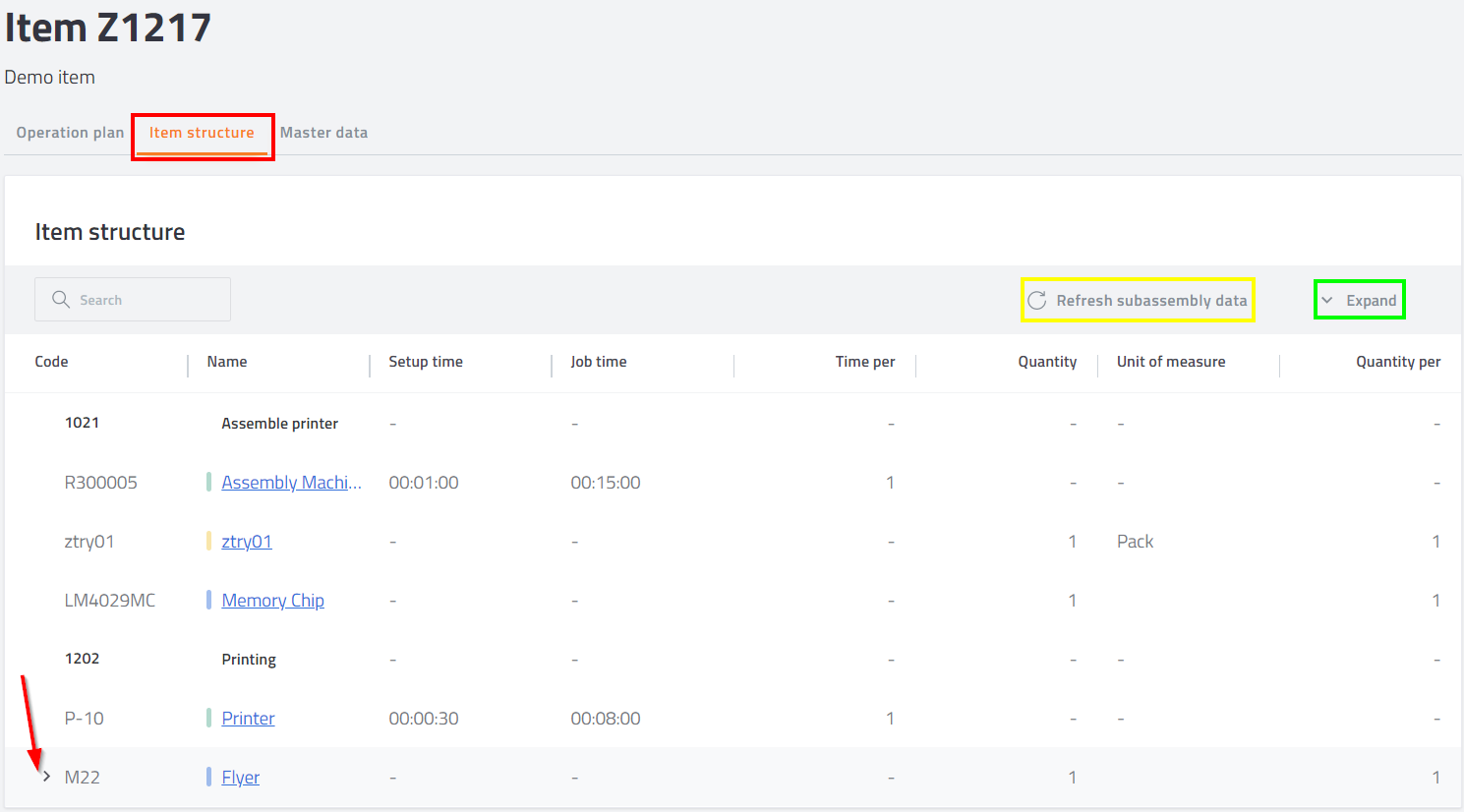

The Item structure tab of the item details page provides an overview of the item's operation plan in a tree-like structure.

This view lists the operations, resources, and materials used in the operation plan, and the structure can be expanded by pressing the Expand / Collapse toggle switch (in a green frame in the screenshot above) to also show the operation plan of the sub-assemblies. You can also expand a particular sub-assembly by clicking the > icon on the left of its root item (as indicated by a red arrow in the screenshot above).

If the master data of a sub-assembly is modified while the item structure is open, click Refresh sub-assembly data (in a yellow frame in the screenshot above) to update the whole structure.
