Configure table texts in the VPS

You can define which Dynamics 365 Business Central information should be displayed as labels in the table for the following elements:

• Production orders
• Production order lines
• Production order routing lines
• Machine centers
• Work centers
• Work center groups

The example below shows a table label for a production order routing line, which includes:

• The operation number
• A space
• The description enclosed in brackets


How to proceed

For customizing the table label, proceed as follows:

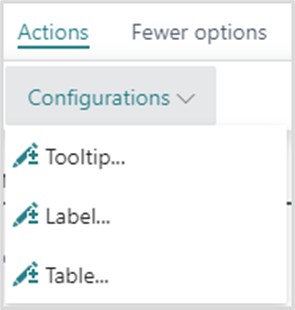

• Click "Configurations" in the "Actions" menu of the "User Setup" dialog:



  In the "View - select table text" dialog, select the item for which you want to customize the table label, in our case, "Production Order Routing Line":

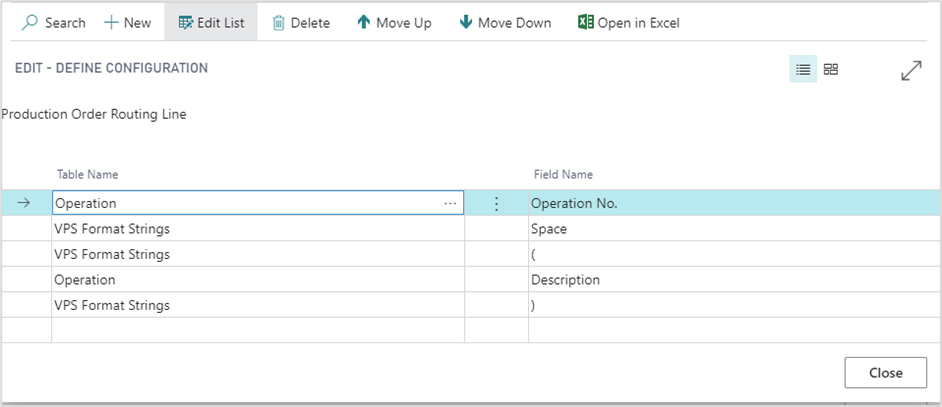

• The “Edit – Define Configuration” dialog pops up:



Here you can add, insert, edit, and delete fields and change their order. You can select the desired table name and field name from your Dynamics 365 BC data by clicking “…”.

Formatting the labels

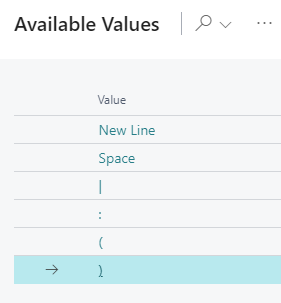

To separate field contents, use a blank space or one of the separators listed below by selecting the desired character from the 'VPS Format Strings' table.
