The "Appearance" settings of the VPS

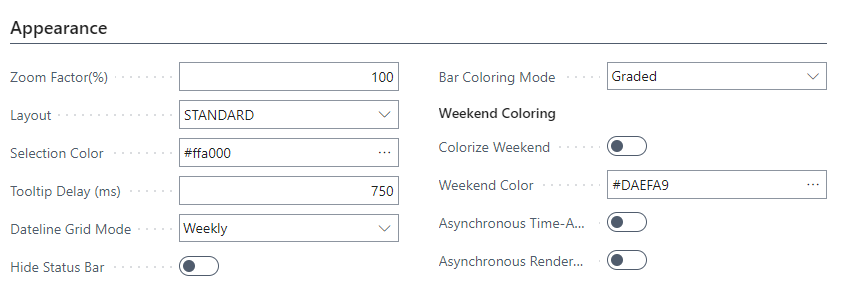

In the "Appearance" section you have several options for specifying the layout of your plan.

The options in detail:

• Set the zoom factor in %

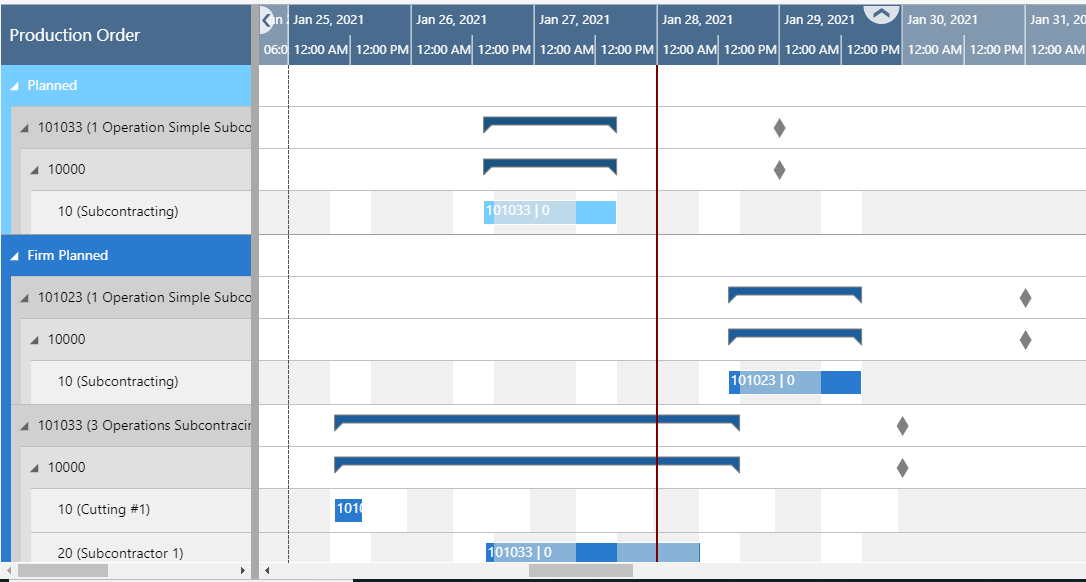

• Select a layout: In the "Compact" layout, the display is reduced as much as possible to provide a better overview, especially with large plans.

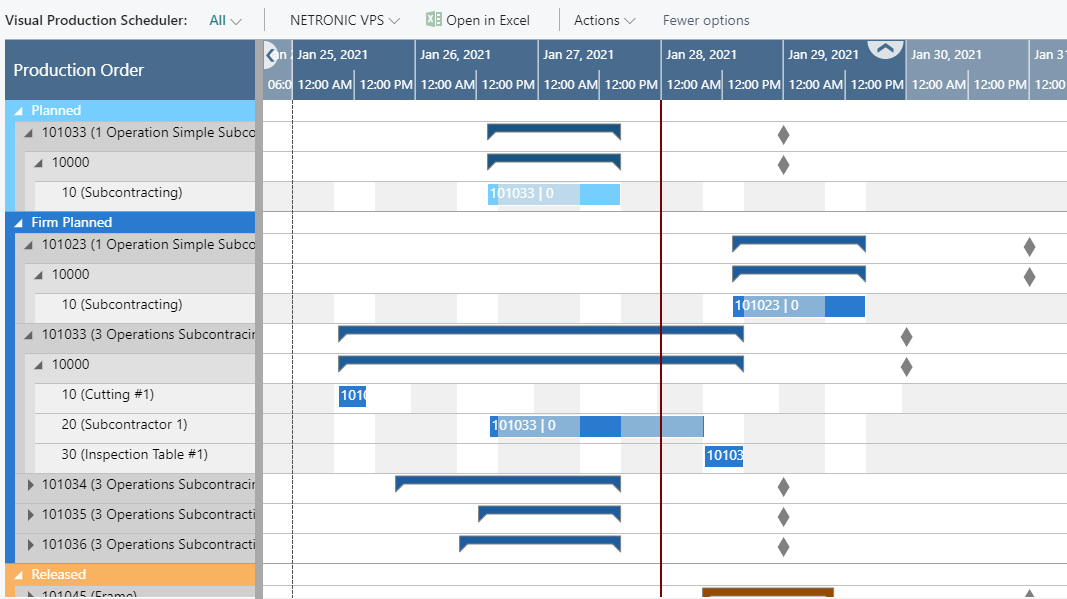

  • Standard layout:


•
  • Compact layout:


• Specify a tooltip delay: give a time in milliseconds after which the tooltip will appear

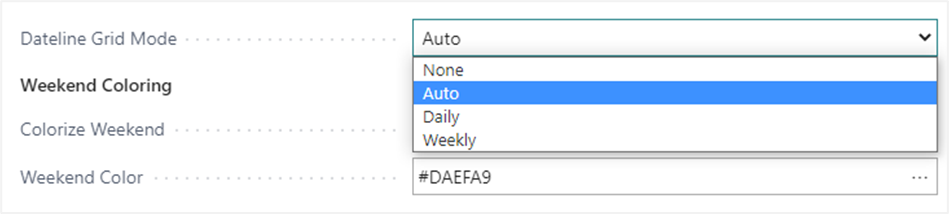

• Show/hide vertical separation lines between individually selectable intervals and select a display mode:



The "Auto" mode causes the grids to automatically adjust to the resolution of the time scale resulting from zooming in or out.

For more information, see The calendar.

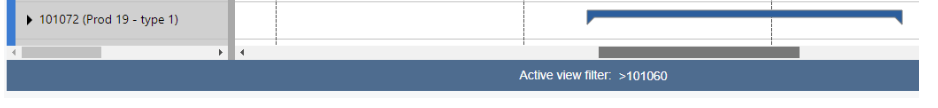

• Show/hide a status bar with real-time information about the active view filters.

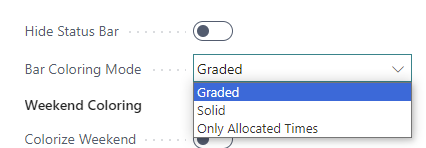

• Bar colors: Select individual bar color schemes that ensure that the label texts are always visible.



For more information on the options, see the Bar colors section in chapter "The Calendar".

• Specify the coloring mode of the weekends


•
  • Select whether you want to color the weekends individually

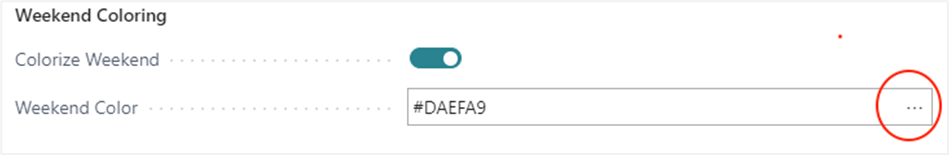

  • Click "..." to open the Color Picker dialog where you can
    • Select the desired color

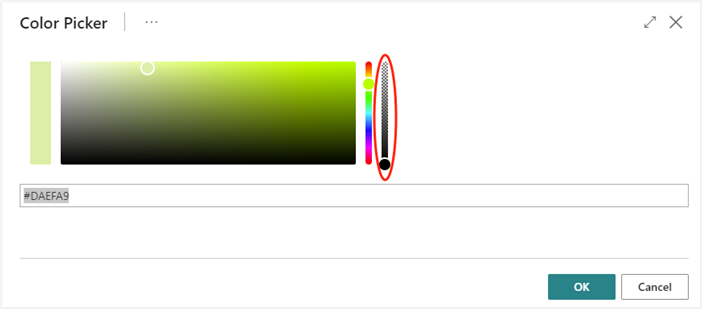

    • Adjust the transparency:

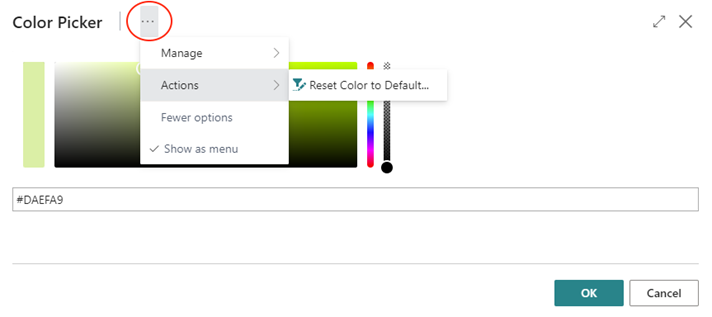

    • reset the weekend color to default comfortably and at one click:



• Improve the visual responsiveness and performance when navigating big plans by ticking off/on the options:
  • Asynchronous Time-Area Stretching
  • Asynchronous Rendering
