This article shows an example of how the Perfion Factbox can be implemented in SAP ECC / S4Hana. This is not a standalone module that can be purchased and installed, but a custom integration that needs to be implemented. Boyum offers no support for such implementation.
The Perfion ERP Add-in for SAP is an integration between Perfion and SAP, which displays Perfion product details in SAP for the product you are editing. The integration also allows you to open the Perfion item card for the same product and update Perfion product data.

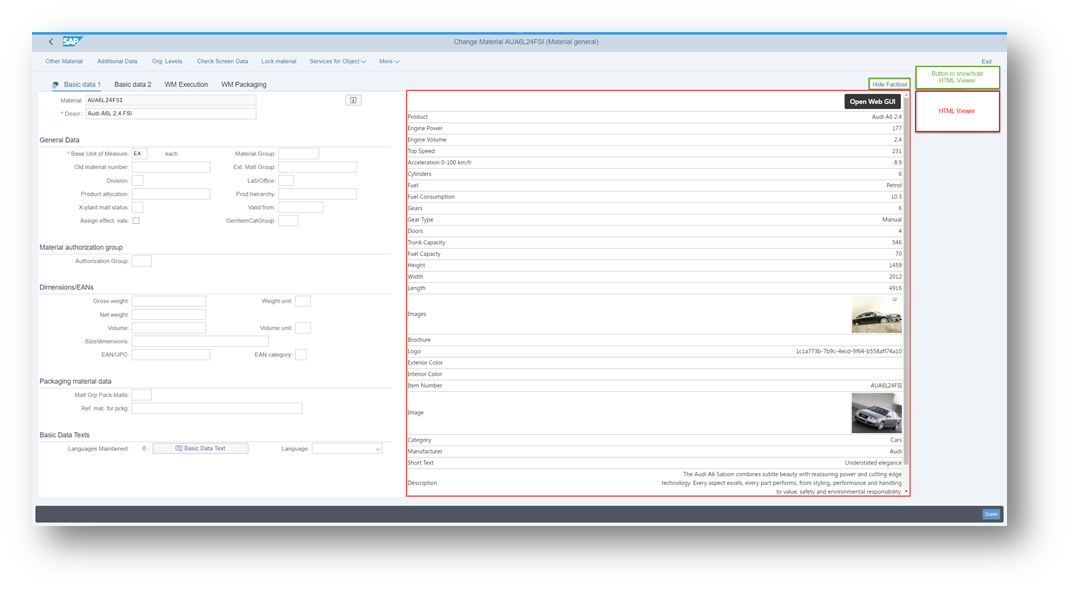

More specifically, the Add-in uses SAP Screen Personas to reserve a portion of the screen of MM02 to display the relevant Perfion data via a web page embedded in your SAP window:
Prerequisites
Perfion:
The following requirements must be met:
- Perfion Database: Version 4.5 or above
- Perfion API: Version 4.5 or above
- Perfion Web Client: Version 2019-R1 or above
The Perfion Web Client must be installed, so that it is accessible from the SAP server.
For instructions on how to install and configure Perfion and the Web Client, please refer to the separate manuals for those topcs..
SAP:
The following requirements must be met:
SAP Basis components: SAP Screen Personas 3.0: Configuration guide
SAP UI components: SAP GUI for Windows 7.40 minimum PL10 or SAP GUI for HTML
Installation and Configuration
Screen Personas Development Components
The flavor “Perfion” was developed via. Screen Personas for transaction MM02.
A HTML Viewer was added to hold to the Perfion plugin – further a button was added to hide/show the fact box.

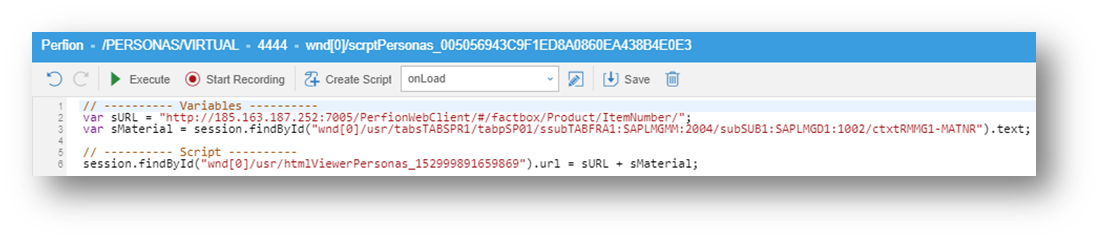

OnLoad Script:

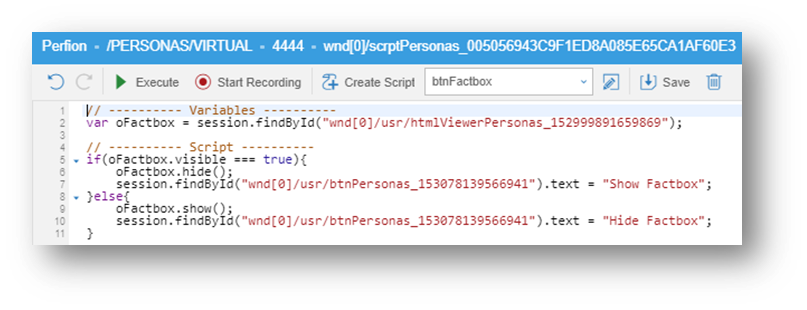

BtnFactbox script:
Implementation steps
Import flavor:
| # | Description | Screenshot |

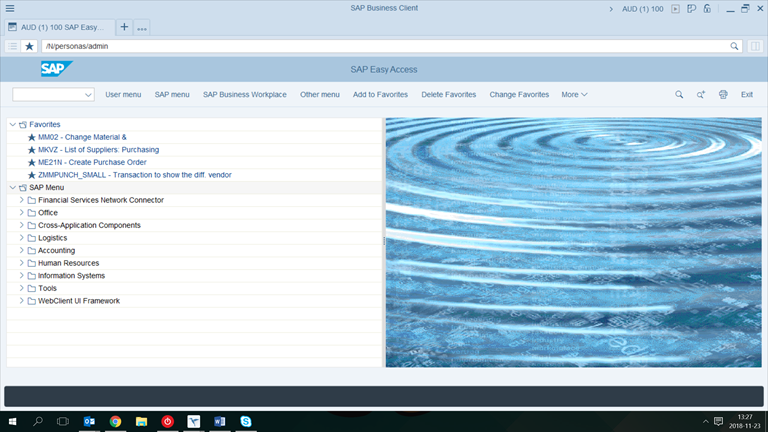

| 1 | Go to transaction: /PERSONAS/ADMIN |
|

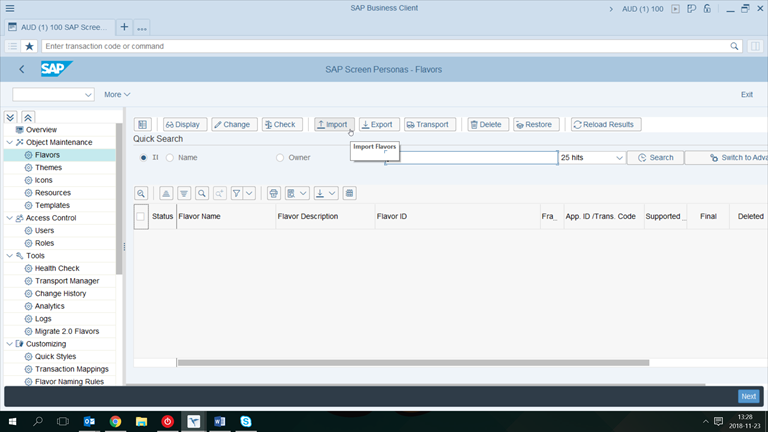

| 2 | Go to Flavors and choose Import |
|

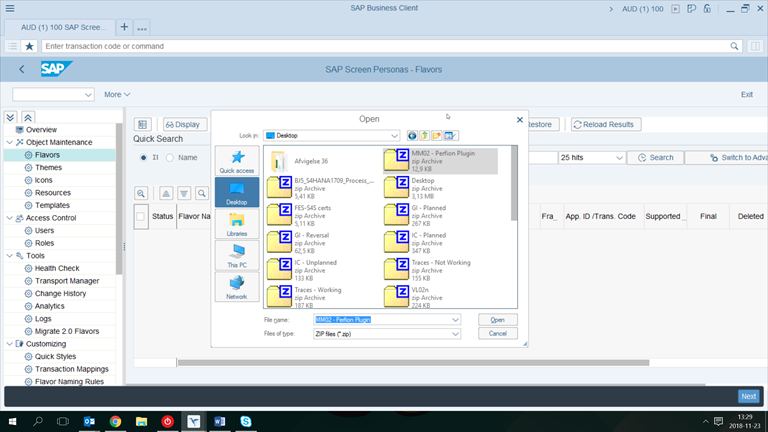

| 3 | Locate “MM02 – Perfion Plugin” and choose Open |
|

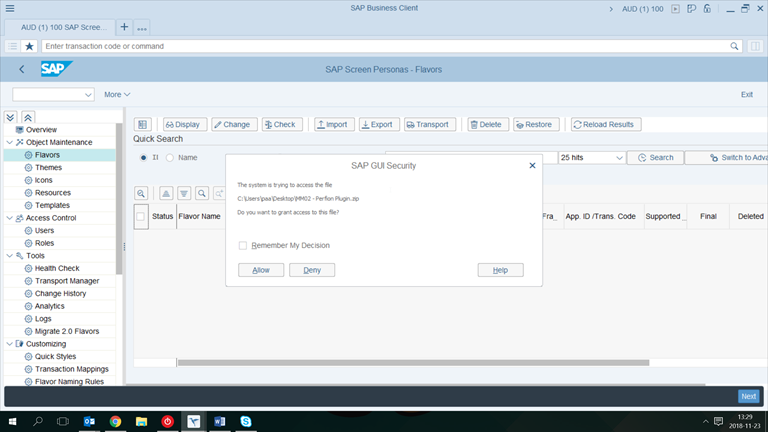

| 4 | Choose Allow |
|

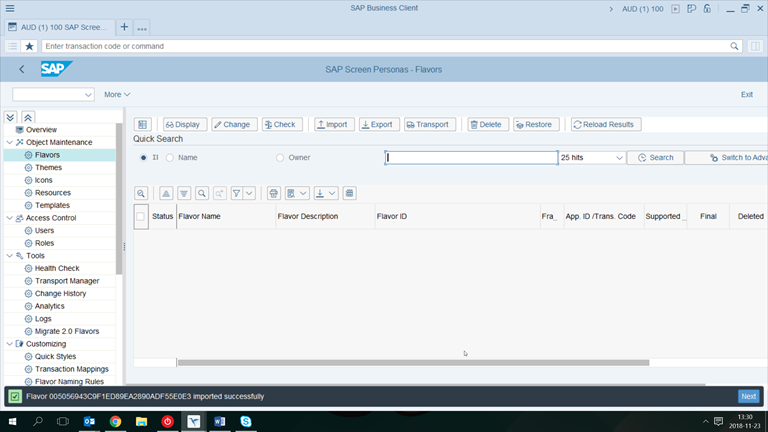

| 5 | Flavor was imported |
|
Assign flavor to role:
| # | Description | Screenshot |
| 1 | Go to transaction: /PERSONAS/ADMIN |
|

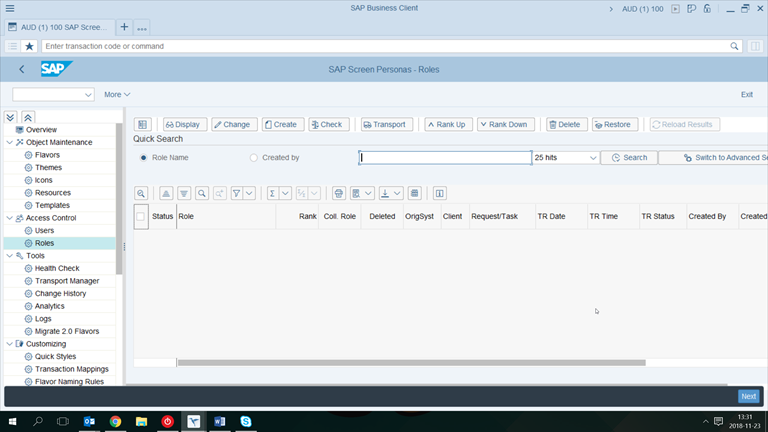

| 2 | Go to Roles and choose Create |
|

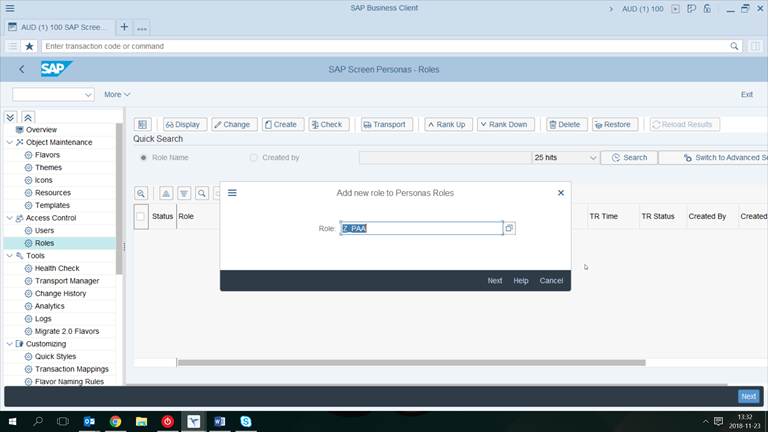

| 3 | Locate role |
|

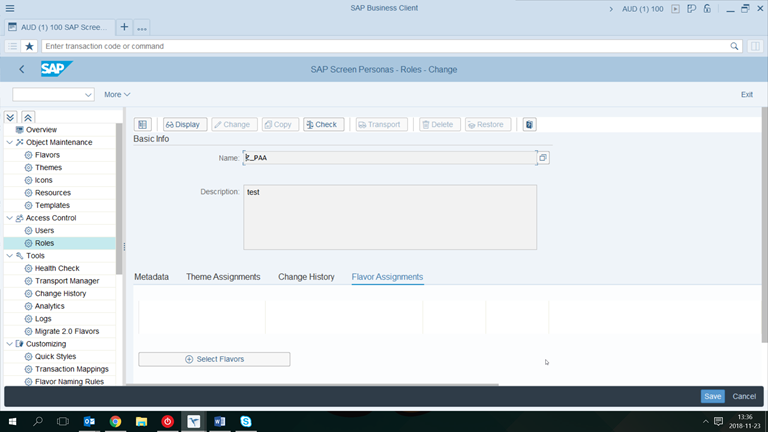

| 4 | Choose Change and go to flavor assignment and choose Select Flavor |
|
| 5 |

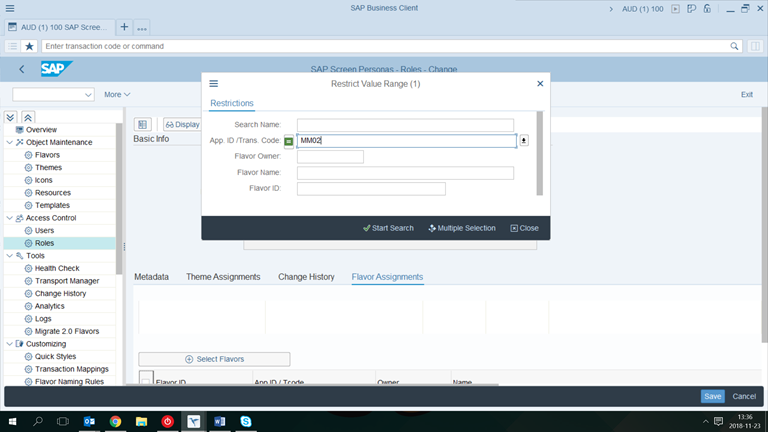

Locate flavor
|
|

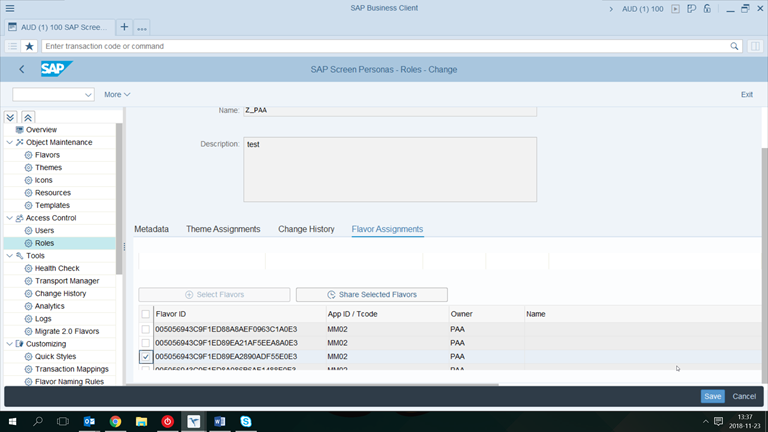

| 6 | Highlight flavor and choose Share Selected Flavors |
|

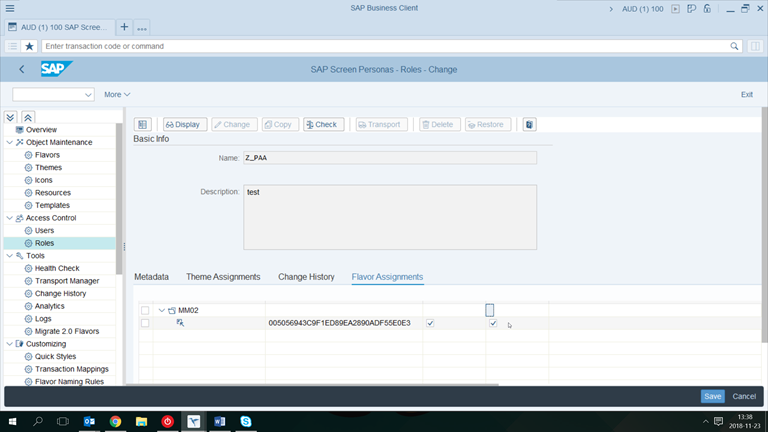

| 7 | Choose Flavor Assigned and Flavor default and Save |
|
