Enable Customizing on Item structure View

Paco Bayer

• May 02, 2019 14:35

Dear Boyum IT team,



It would be really useful to be able to customize the Item structure view, for example add more information via custom columns or making standard columns invisible.

Please consider this request.



Kind Regards





Vote

5

•

  Fabio

  • February 02, 2022 12:47

  Need a filter inactive itens on item structure.
•

  Martin Heigl

  • February 03, 2022 05:16

  Hi Paco,

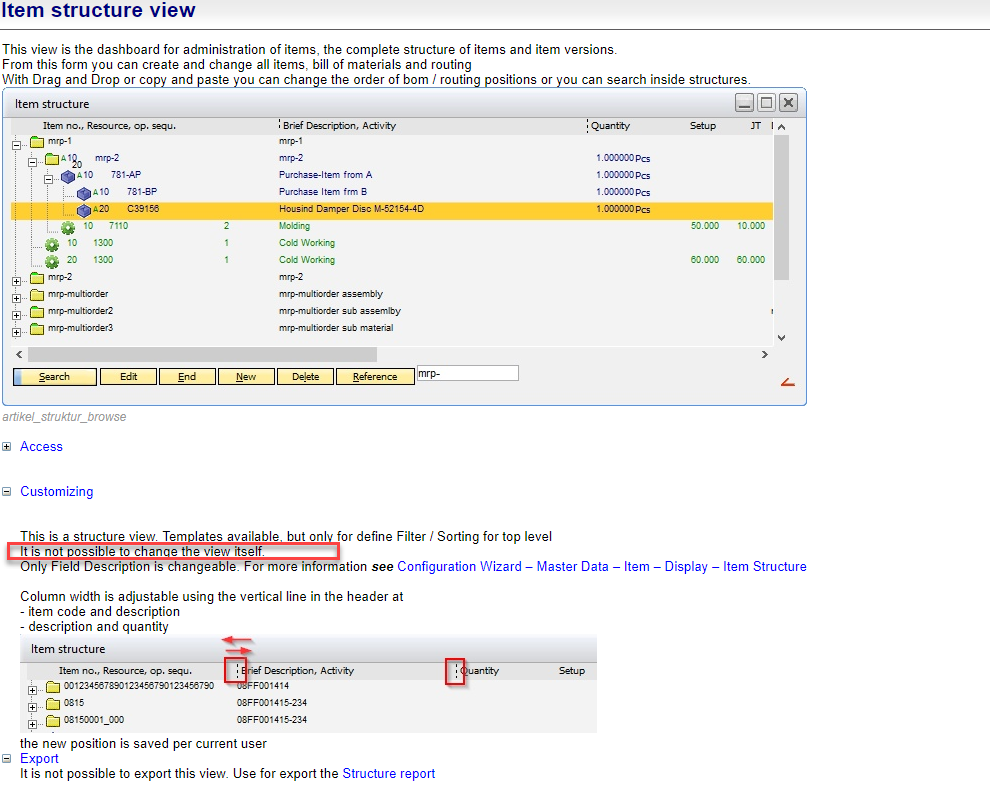

  it's not possible to change this. Structure views are very nice, but to change it is not simple

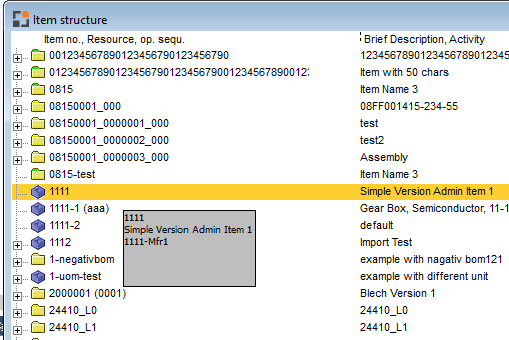

  Other Idea: Create your own ToolTip with displaying a Text field after mouse click



  here an example
  Every type of line as own "zeilentyp". Item self = 0. You can check the current type with
  messagebox=<zeilentyp>

  Here an example script

  global function dw_1_load
  // Create text field
  dw_1.create=text=name=info_t<tab>text=Hello<tab>band=foreground<tab>width=600<tab>height=300
  // we must use datawindow syntax for follow parameter
  dw_1.modify=info_t.background.color='<rgb:190:190:190>' info_t.background.mode=0 info_t.border=2 info_t.visible='0'
  end global

  // Mouse click: Display it, if typ=0
  global function dw_1_click
  dec x,y
  x=<form.click.x> + 90
  y=<form.click.y> + 60
  dw_1.item.info_t.x=<x>
  dw_1.item.info_t.y=<y>

  // Click on normal item
  if <dw_1.item.zeilentyp.value> = 0 then
    dw_1.item.info_t.visible=1
    sqlca.select "suppcatnum" from "OITM" where "ItemCode" = <dw_1.item.itemcode.value,dbstring>
    dw_1.item.info_t.text=<itemcode><cr_lf><itemname><cr_lf><sqlca.result.1>
    return 1
  end if

  // all other: make unvisible
  dw_1.item.info_t.visible=0
  end global
