Golden arrow(B1up) open beas screen

Answered

sergio bonini pampanelli

• July 16, 2018 20:37

Hello,

I'm trying to make a golden arrow opens a beas screen (resources). I've checked the online manual but it only show me how to customize it to open b1 native screens, via macro.

Can anyone tell me how to link a golden arrow to a beas screen? Would helpm e a lot.





Vote

0

• Official comment



  Kasper Moeller

  • August 15, 2018 13:27

  Hi Sergio

  Thank you for writing us.

  Yes it is possible to link a golden arrow to a beas screen. You will need to combine the beas B1UP functionality with standard B1UP functionality.

  I have created a guide below where a golden arrow is created for a field in the extended master data and is configured to open the beas screen “Resource Master Data”.

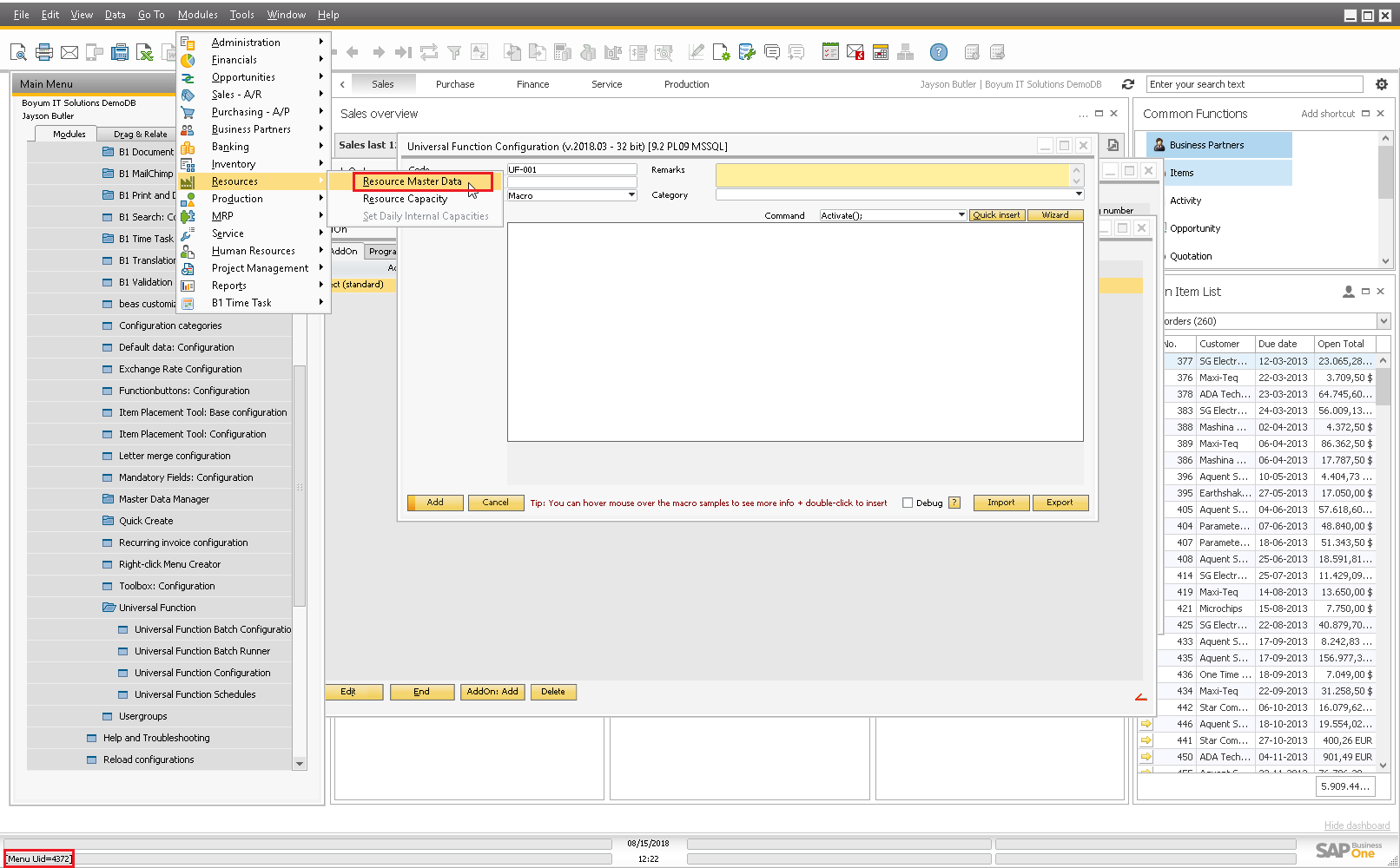

  1. Identify the name of the Menu Uid that you want the golden arrow to direct you to.



  In this example the Uid is: 4372

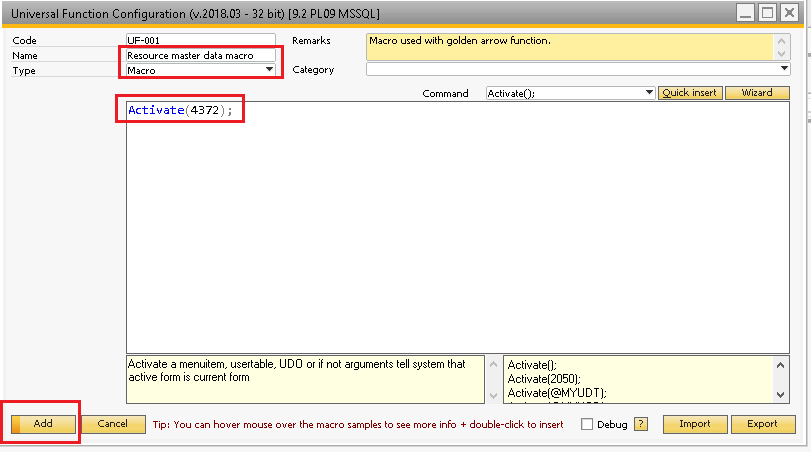

  2. Create a macro in standard B1UP :

  Go to:

  Administration - Add-Ons - B1 Usability Package - Module Configuration - Universal Function - Universal Function Configuration:

  Go to add mode:

  Name: Give the macro a name

  Type: “Macro”

  Command Window: Activate(4372);

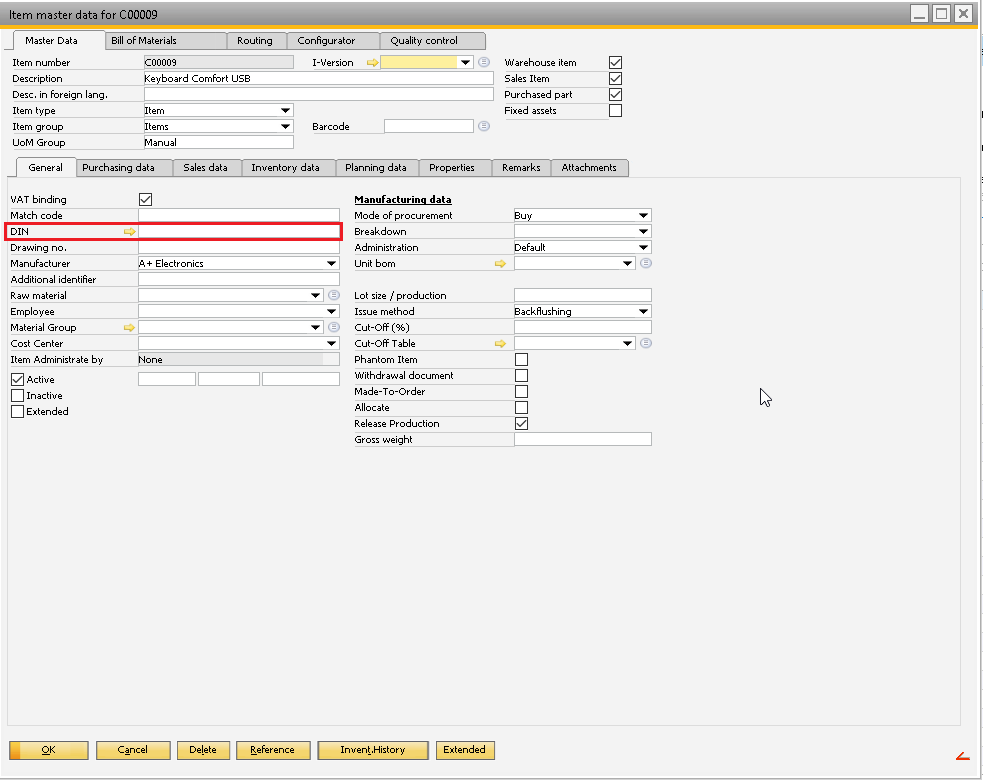

  3. Open” Item master data for xxxxx”

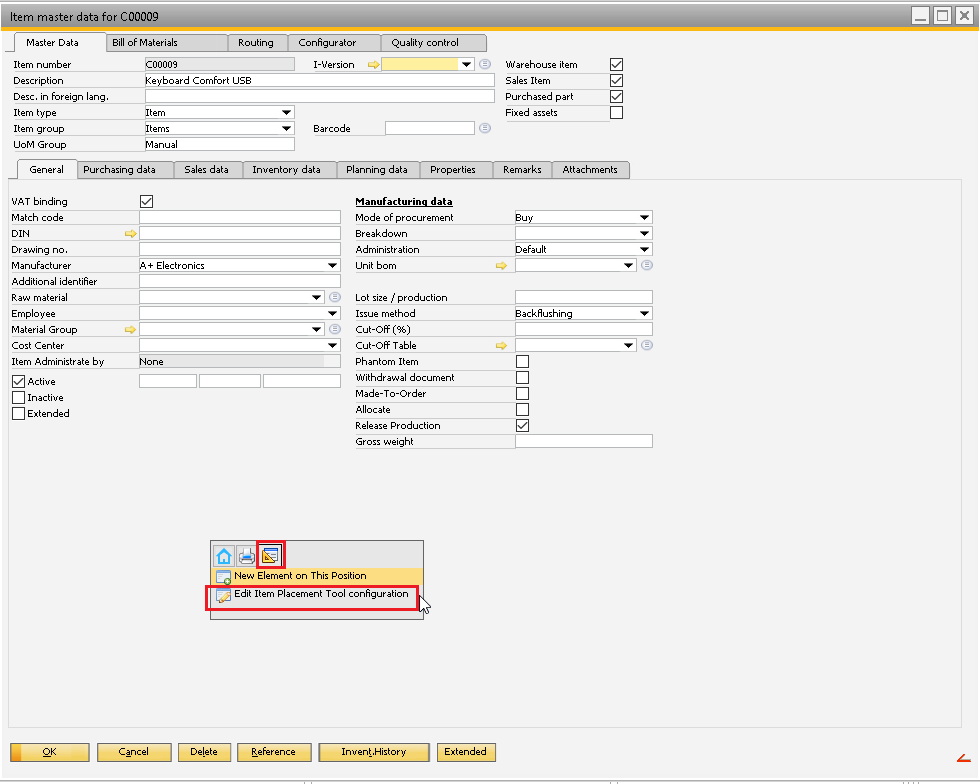

  Open “Edit Item Placement Tool Configuration” (Right click somewhere on the screen, select the configuration icon and then “Edit Item Placement Tool Configuration”)




  Click on “Line Add”

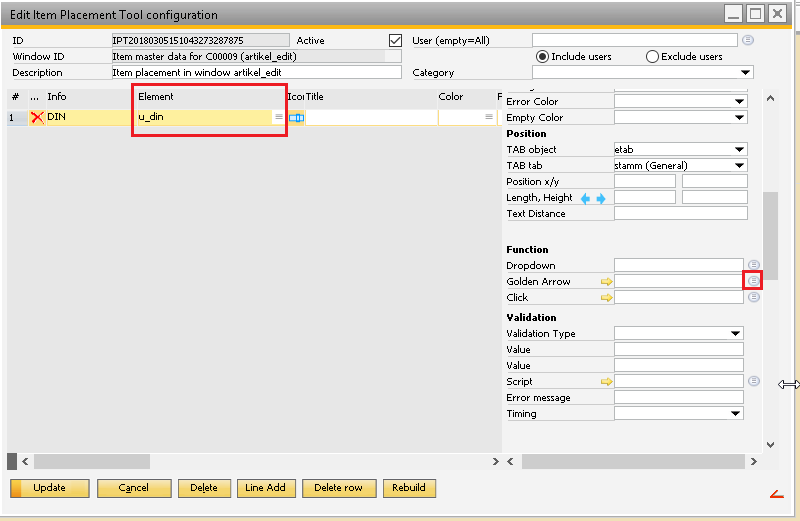

  Select the field/element that you want to add the golden arrow to. In this case I have selected “u_din” from the dropdown in the “Element” column

  In the right side column click the “List” button to the right of the “Golden Arrow” field




  When the “List of Functions” screen pops up then select the function you just created and click “Transfer”




  In the “Item master data for xxxxxxxx” window click “Update”




  Now you should be able to see the golden arrow you just created.
