The command will send an e-mail for each record in the FROM Data Source or a single e-mail if the Data Source FROM is not specified. The command is introduced from Perfion2022 R1.
Properties
| From |
Optional. Input Data Source. If the input is a neutral Table-format the columns can be used to map fields to the e-mails. If the input is a binary stream, the input will be attached to the e.mail. |
| To |
Optional. Name of the Output Data Source. The output will contain the result of the send e-mails. Besides the columns from the Input Data Source, the output will contain columns: To, Subject, Body, Cc, Bcc, Attachment, ReplyTo, SendSucceed, ErrorMessage, IgnoreError. |
Parameters
| @SMTP |
The SMTP connection. See the below SMTP section for more info and the syntax. Lookup from a named Connection defined in Perfion Go to Administration -> Remote Queries and open a query to see available Remote Connection names: |
| @IgnoreError | Ignore errors when sending e-mail. If the sending failed the "SendSucceed" in the output will be False |
| @To | The recipients of this e-mail message. Multiple recipients can be added, separated with Comma or Semicolon |
| @Subject | The subject line |
| @Body | The message body. |
| @Cc | The carbon copy (CC) recipients of the e-mail message. Multiple recipients can be added, separated with Comma or Semicolon |
| @Bcc | The blind carbon copy (BCC) recipients of the e-mail message. Multiple recipients can be added, separated with Comma or Semicolon |
| @Attachment | Binary GUID's added as attachments to the e-mail. Multiple binary GUID's can be added, separated with semicolon. In the e-mail sent, the filename stored in Perfion is used. |
| @ReplyTo | The Reply to e-mail address |
Map
| From | Name of Header, as it is named from Input-source. |
| To | e-Mail parameters: To, Subject, Body, Cc, Bcc, Attachment and ReplyTo can be mapped from the Input source instead of using the @parameters. It is not possible to specify the same parameter eg. "To" both as a Mapping and a parameter. |
| Script | Any Script code to execute for this header |
SMTP
Syntax:
host=<server name or ip>;port=<portnumber>;username=<username on server>;
password=<password in plaintext>;usessl=<true/false>;fromaddress=<from address>
;fromname=<from name>| Setting | Description | Default value |
|---|---|---|
| Host | The Name of the Header as it should be called in the Output-source. | Mandatory/Not specified |
| Port | The Port number on the SMTP host | 587 |
| FromAddress | The displayed "From address" | Mandatory/Not specified |
| FromName | The displayed "From name" | Not specified |
| Username | Username to the login credentials | Not specified |
| Password | Password in plane text to the login credentials | Not specified |
| UseSSL | Use Secure Sockets Layer (SSL) to encrypt the connection | Default is false |
| UseHTML | Use HTML in the mail message body | Default is false |
Example 1

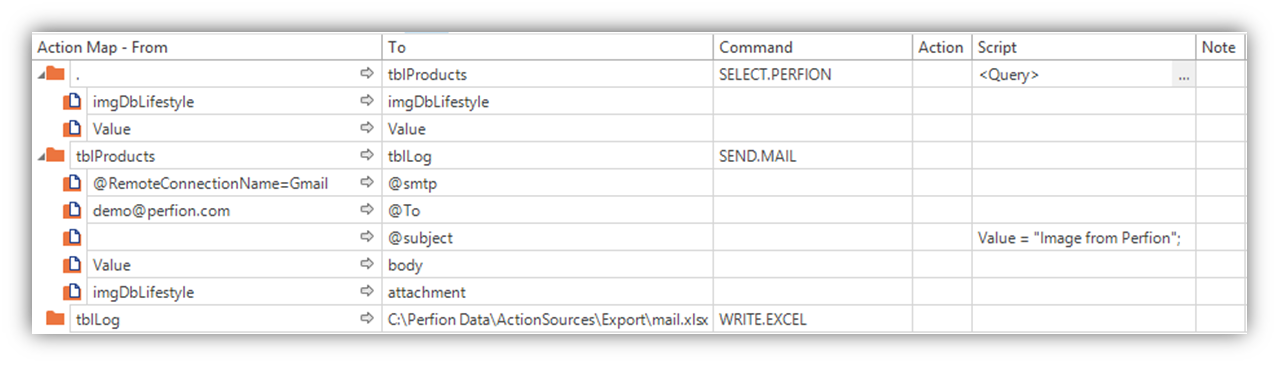

Example of SEND.MAIL command setup in Actions to send mail for each image in tblProducts.
Notice that the body and attachment do not use the @parameters, so they are mapped from the input source and the feature value will show in the body and the Lifestyle image is used as an attachment.
Example 2

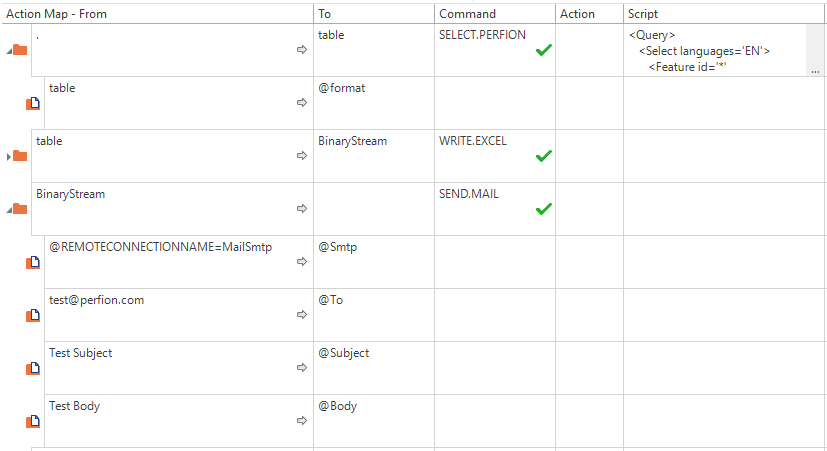

Example of SEND.MAIL command setup in Actions to send mail with attachment BinaryStream.
